Extreme Duty Clutch

clutch

The stock Toyota clutch is very robust and well matched to the torque output of a 1HZ engine and intended use of the stock vehicle up to GVM. Indeed, it can be argued that the torque capacity of the stock clutch has enough headroom to accommodate the increased torque levels of the Safari 160 Horsepower Turbo-system at the rated GVM of the stock vehicle.

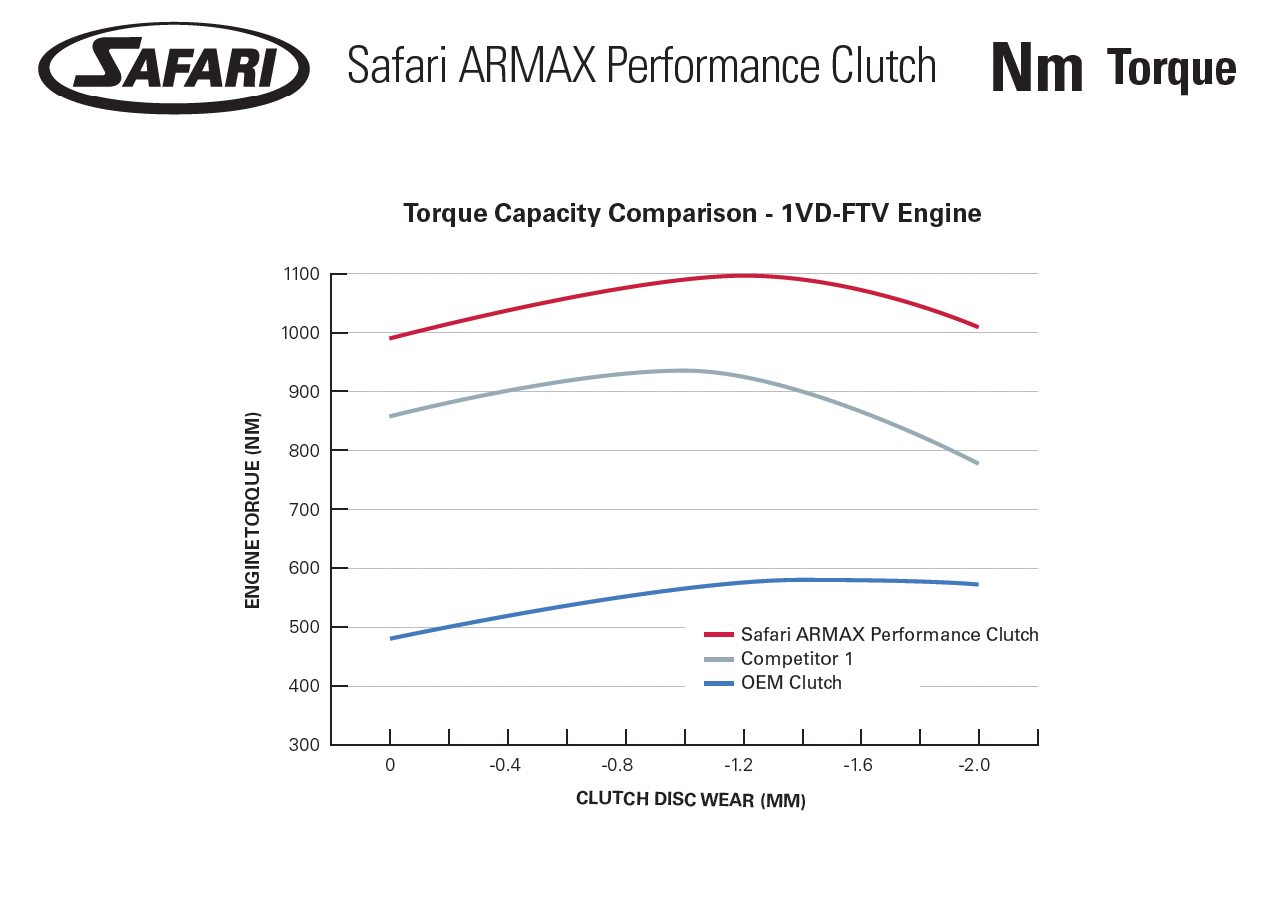

In an armoured vehicle application however, the combination of vehicle weight and the enhanced engine torque demands a substantial improvement in clutch performance. Safari have stepped up to the plate and engineered replacement clutch assemblies that have 40% or 60% higher torque capacity as required. That is a huge improvement and best of all, maintains stock driveability characteristics.

The Safari Clutch Assembly allows the professional operator to fully utilise the torque of the turbocharged 1HZ engine with unsurpassed driveability and durability.

Given the increased GVM of a 70 Series Land Cruiser in an armoured vehicle application and/or the increased torque of the Safari 200 Horsepower Intercooled Turbosystem, Safari recommends the installation of the Safari 60% increased torque capacity clutch assembly.

Extreme Duty Oil Cooler Systems to suit:

70 Series 2007 Onwards
P/N: SDHZJ70CHD +60% 1HZ Engine
P/N: SDHZJ70C +40% 1HZ Engine

100 Series 1998 – 2008
P/N: SDHZJ70CHD +60% 1HZ Engine
P/N: SDHZJ70C +40% 1HZ Engine
P/N: SDHDJ100 +40% 1HD Engine

80 Series 1990 – 1997
P/N: SDHZJ80 +40% 1HZ Engine
P/N: SDHDJ100 +40% 1HD Engine

70 Series 1999-2007 Only
P/N: SDHZJ70CHD +60% 1HZ Engine
P/N: SDHZJ70C +40% 1HZ Engine
P/N: SDHDJ100 +40% 1HD Engine

Safari 4x4 Engineering - Armax 4x4 Extreme Duty Clutch Systems for 4WD Vehicles
