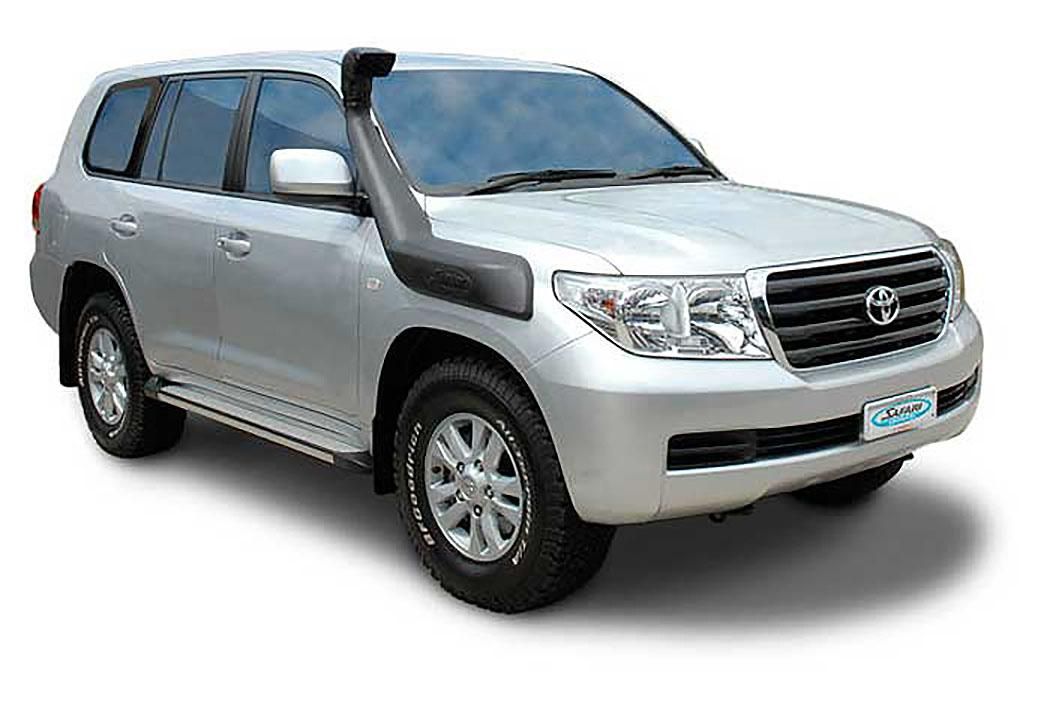

ss87hf snorkel toyota 200 series landcruiser

4X4 SNORKEL suitable for the Toyota 200 Series Landcruiser 03/2012-10/2015 4.6L Petrol 1UR-FE

Safari Part Number: SS87HF

Safari Snorkel

The SS87HF Safari Snorkel suitable for Toyota 200 Series Landcruiser 4x4 is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of 03/2012-10/2015 4.6L Petrol 1UR-FE engines.

With the huge air flow demands of each engine in the Toyota 03/2012-10/2015 4.6L Petrol 1UR-FE 200 Series Landcruiser, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

Huge air flow is but one aspect of the ultimate in designing a snorkel suitable for the Toyota 200 Series Landcruiser. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

The genuine Safari Snorkel suitable for Toyota 200 Series Landcruiser 4x4 body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Safari Snorkel suitable for Toyota 200 Series Landcruiser breezes through the toughest off-road conditions on the planet.

Safari Snorkel suitable for Toyota 200 Series Landcruiser 4x4 Features

  • Safari Automotive Australian designed, moulded and manufactured
  • Raised air intake to prevent your engine from ingesting harmful elements
  • Increased airflow for your 03/2012-10/2015 4.6L Petrol 1UR-FE engine
  • Water separating air ram design to remove water from the air stream
  • Durable and UV stable snorkel and air ram for added strength
  • Comprehensive fitting guide for Safari Snorkel suitable for Toyota 200 Series Landcruiser 4WD with an accurate template for assisting with installation.

Safari Snorkel suitable for Toyota 200 Series Landcruiser 4x4 Kit - Parts List

Part Number SS87HF

ss87hf toyota 200 series landcruiser snorkel kit

Actual model not shown.

ITEMPART NO.
DESCRIPTION
QTY
1 370-133-000 BODY - SNORKEL (SS87HF) 1
2 000-135-800 AIR RAM ASSEMBLY 1
3 370-032-000 BRACKET - UPPER MOUNTING 1
4 000-002-100 BOLT - HEX - 6mm x 1.0 x 14mm (SEMS) 2
5 000-951 SCREW - S/T - 4.2mm x 13mm 3
6 000-960 INSERT - PLASTIC 3
7 370-435-000 GASKET - UPPER MOUNTING BRACKET 1
8 000-110 STUD - S/S - 8mm x 1.25 x 25mm 5
9 000-349-300 WASHER - BODY - 8.4mm x 40mm - 304 S/S 5
10 000-377 WASHER - RUBBER - 8.5 x 42 x 3mm 5
11 000-205-300 NUT - NYLOC - S/S - 8mm x 1.25mm 5
12 370-967-000 BRACKET - GUARD SUPPORT 1
13 370-025-000 SLEEVE - LOWER INSERT (Rubber) 1
14 370-024-000 HOSE - AIR ENTRY 1
15 000-910 CLAMP - HOSE - 90/110mm 2
16 000-914/B CLAMP - HOSE - No. 56 (BLACK) 1
17 370-016-000 GASKET - FOAM BODY (Self Adhesive) 1
18 370-017-000 TEMPLATE 1
